L46-150 TC-CE

Flexographic printers

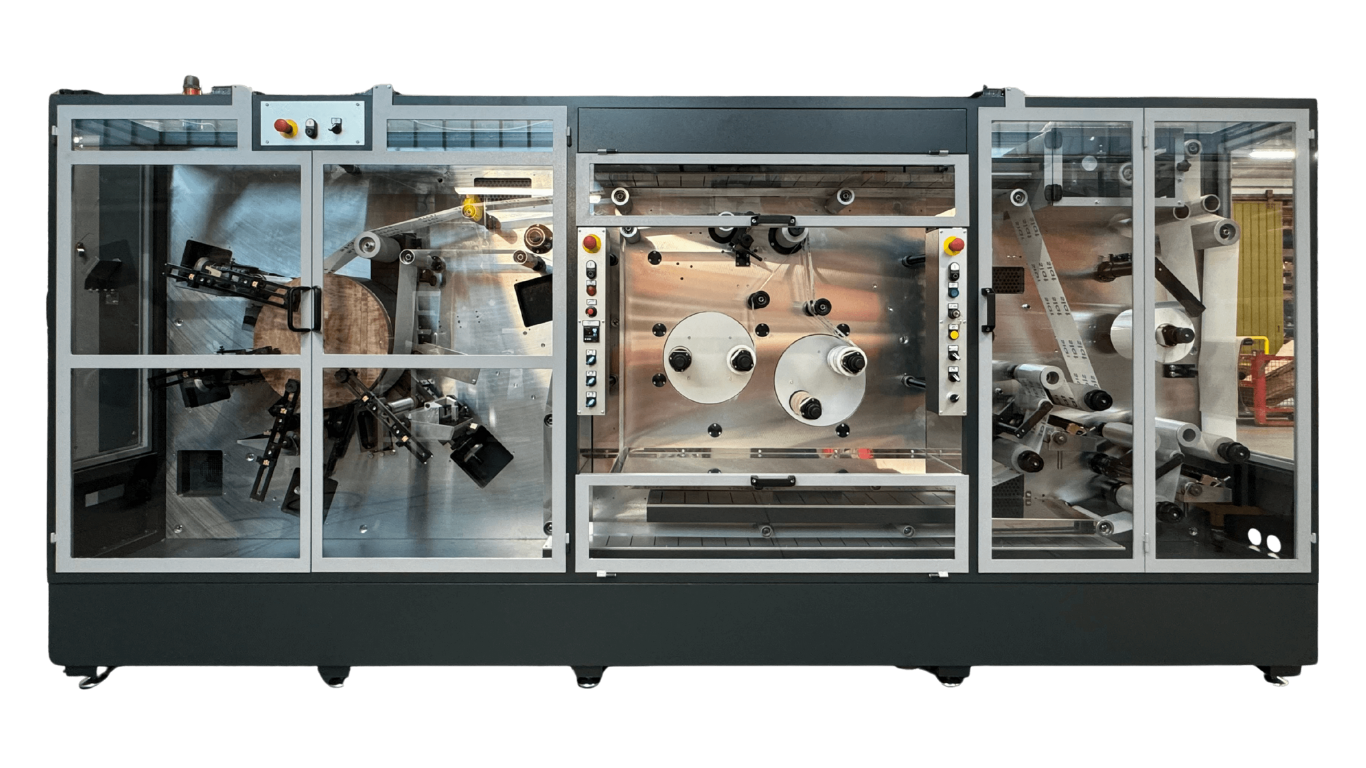

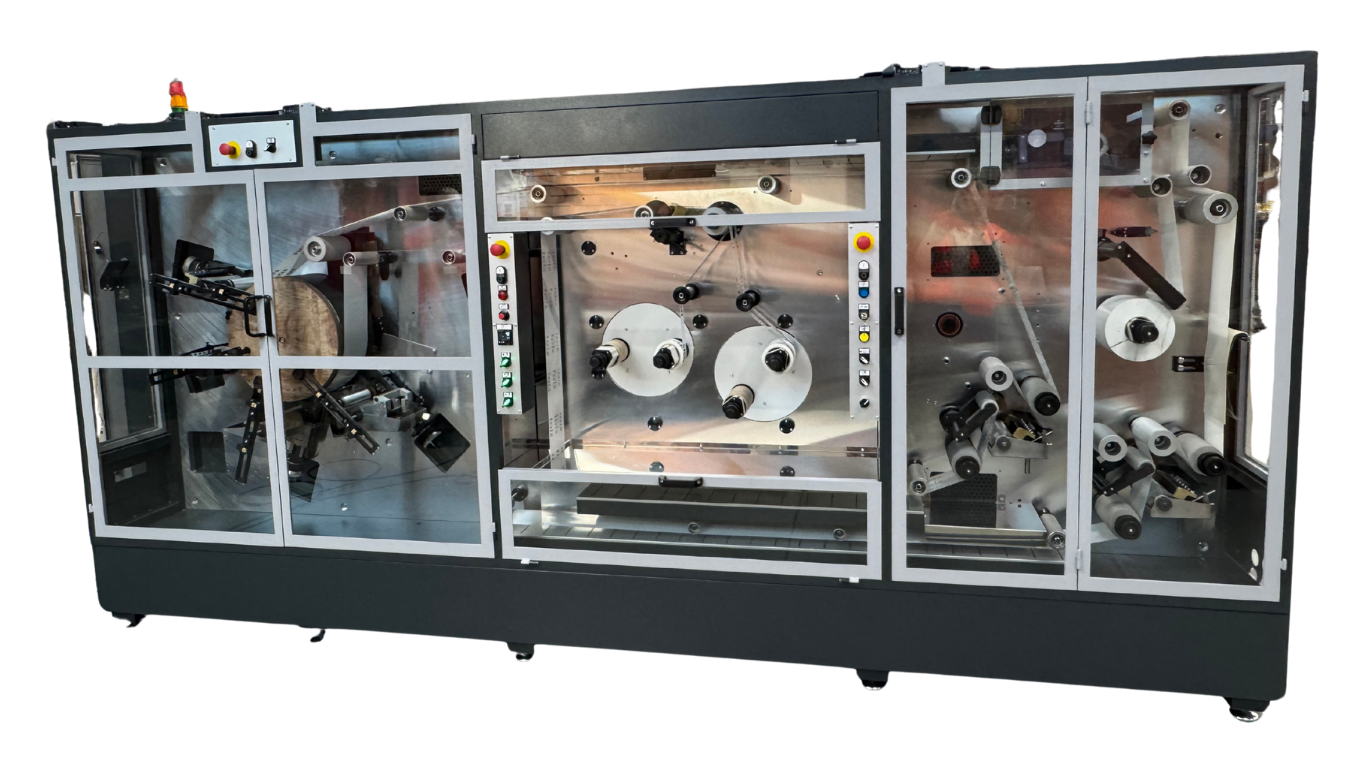

L46-150 TC-CE is a Four Colors Flexographic Printer
The L46-150 TC-CE model is a semi-automatic flexographic printing press for the 4-colour printing of adhesive tape, the tape cutting and rewinding in preset widths and lengths. Working cycle: the machine unwinds, Corona treats, prints, cuts and rewinds the tape; it slows down and turns automatically the rewind turrets when the present length is reached. With an optional device, the machine can also print not adhesive material (not adhesive paper, not adhesive OPP, aluminium and reinforced paper).
Capable print: PVC, OPP, ADHESIVE PAPER (Pre-Treated, Solvent, Hot-Melt, Acrylic Water & Solvent Basis).

Data Sheet Product Photos Product Video Request Info

Advantages

  • check4 printing stations with quick adjustment
  • checkExhausting suction system
  • checkFelt roller to clean the back side of tape
  • checkPneumatic pumps for primer and release
  • checkPrimer and release stations

Key features

  • 4 colors
  • 3″ mechanical unwind mandrel with dry clutch
  • Tefloned central impression drum (standard) or ceramic central impression drum (on demand)
  • Width and length roll 150 mm – max. diameter 420 mm
  • Slitting device by razor blades
  • Set of spacers for slitting blade holders setting: 12 mm – 15 mm – 19 mm – 25 mm – 30 mm – 38 mm
  • Corona treatment
  • 4 hot air drying tunnels with electric resistors
  • Speed control and adjustment from 0 to 160 m/min by inverter
  • Anti-accident protection preset for the exhaustion of solvents
  • 4 ventilation systems between each printing station
  • Exhaust system (5 suction fans)
  • Printed tape rewinding on change-over turrets
  • Primer station
  • Release station
  • Air consumption: 360-400 l/m (5 bar)

Options

ACL50 to print on the adhesive side of transparent tape
Coating station to apply primer and release coats
Peristaltic pumps for ink trays for the automatic feeding of the ink
Pneumatic unwind roller

Machine available without Corona Treatment
Slitting device with pneumatic score knives for cutting reinforced tape, filament tape or masking tape
