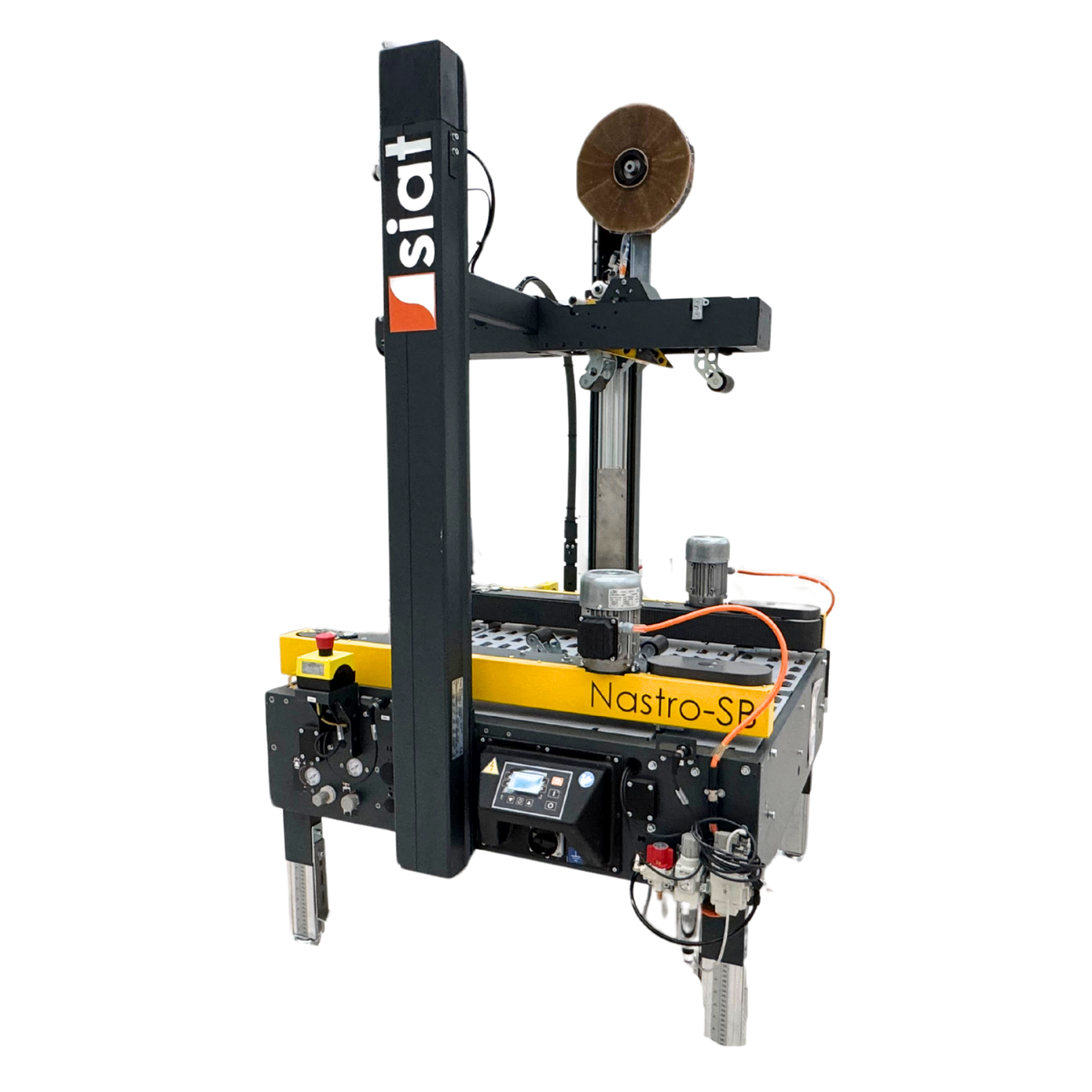

Nastro-SB™ – R5 – R6 – R8 RANGE

Semi-Automatic Heavy duty Case Sealer for small, medium, large and king random box sizes with logic on board

Nastro-SB™ R is a range of heavy duty semi-automatic case sealing machines designed and engineered by SIAT specifically for small, medium, large and king random boxes.
Nastro-SB™ R is the ideal case sealing machine for a variety of industries like food&beverage, chemical, clothes and e-commerce.

Advantages

  • checkIntelligent machine with logic on board
  • checkFaster than standard case sealers thanks to patented variable speed functions
  • checkThank to IoT System the user can have more information about the machine: number of cycles, timing in operation, timing in stand-by, boxes per minute, tape consumption, timing of usage, faults, etc.
  • checkEnergy saving device

Key features

» Logic on board with patented variable speed to increase machine capacity
» Possibility to implement IoT module with SIAT Optirun platform
» Energy saving device included as standard
» Seals upper & lower flaps of cardboard cases or cartons
» Lockable electric and air switch to ensure safety during maintenance» Central (R5) or double side (R6) emergency pushbutton
» Best-In-Class electric and pneumatic components
» Re-designed columns & upper frame to maximize stren­gth and resist to vibration
» New Quick release Taping Heads device (Top & Bottom – No tools required)
» Easy and quick belt conveyor maintenance and change
» 75 mm high belt conveyor for all the range including low boxes machine
» End/broken tape alarm device option



Nastro-SB™ R5B-S / R5T-S
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 500 H 120 – 500

Nastro-SB™ R5B-L / R5T-L
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 105 – 500 H 50 – 50

Nastro-SB™ R6B-S / R6T-S
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 650 H 120 – 650

Nastro-SB™ R6B-L / R6T-L
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 105 – 650 H 50 – 650

Nastro-SB™ R8B-S / R8T-S
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 150 – 800 H 90* – 800

Nastro-SB™ R8B-L / R8T-L
Semi-automatic case sealer – manual adjustment on the different box sizes
Box dimensions
L (mm) 150 – ∞ W 105 – 800 H 50* 800

* with 30 mm tape leg

Options

Higher legs: Nastro leg low height (440-700 mm) – Nastro leg max height (760-1020 mm)

Casters (AS77)
Roller conveyor (RG)

Extendable conveyor (GTL-GTR)
