High-Performance Automatic Case Erector with Unmatched Box Format and Orientation Flexibility

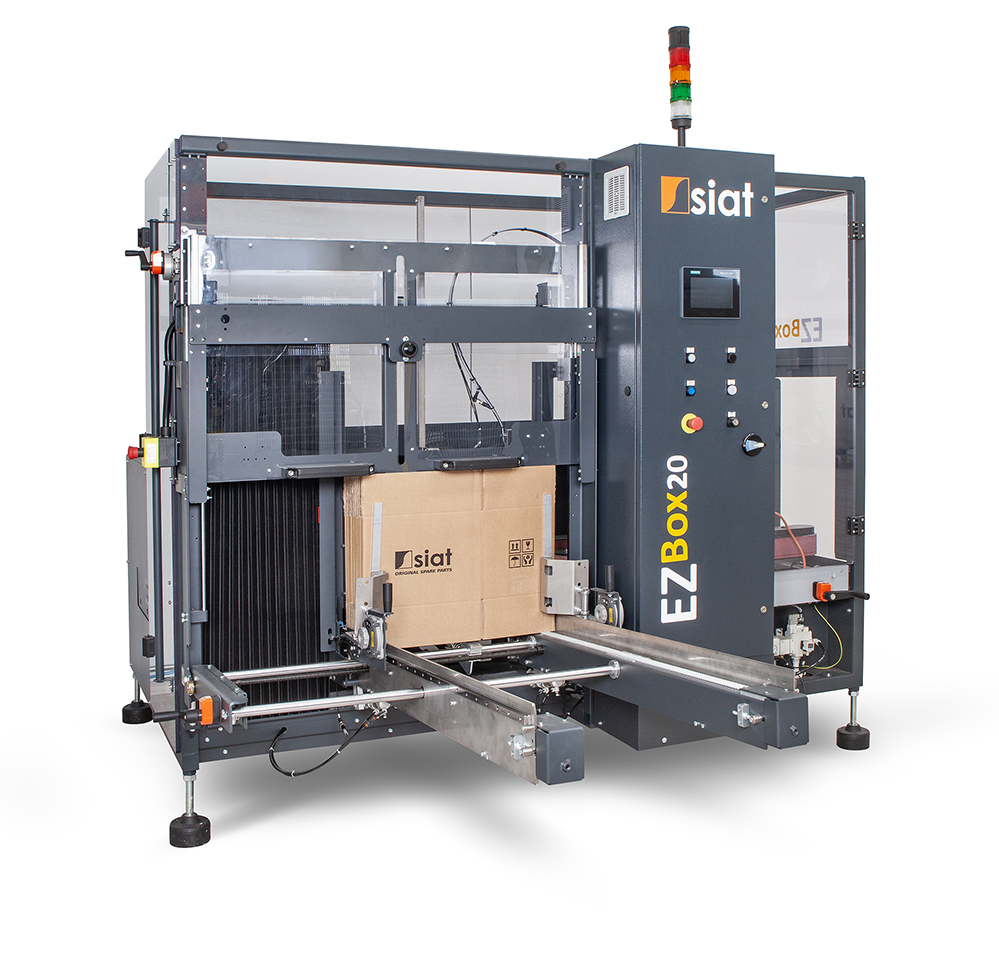

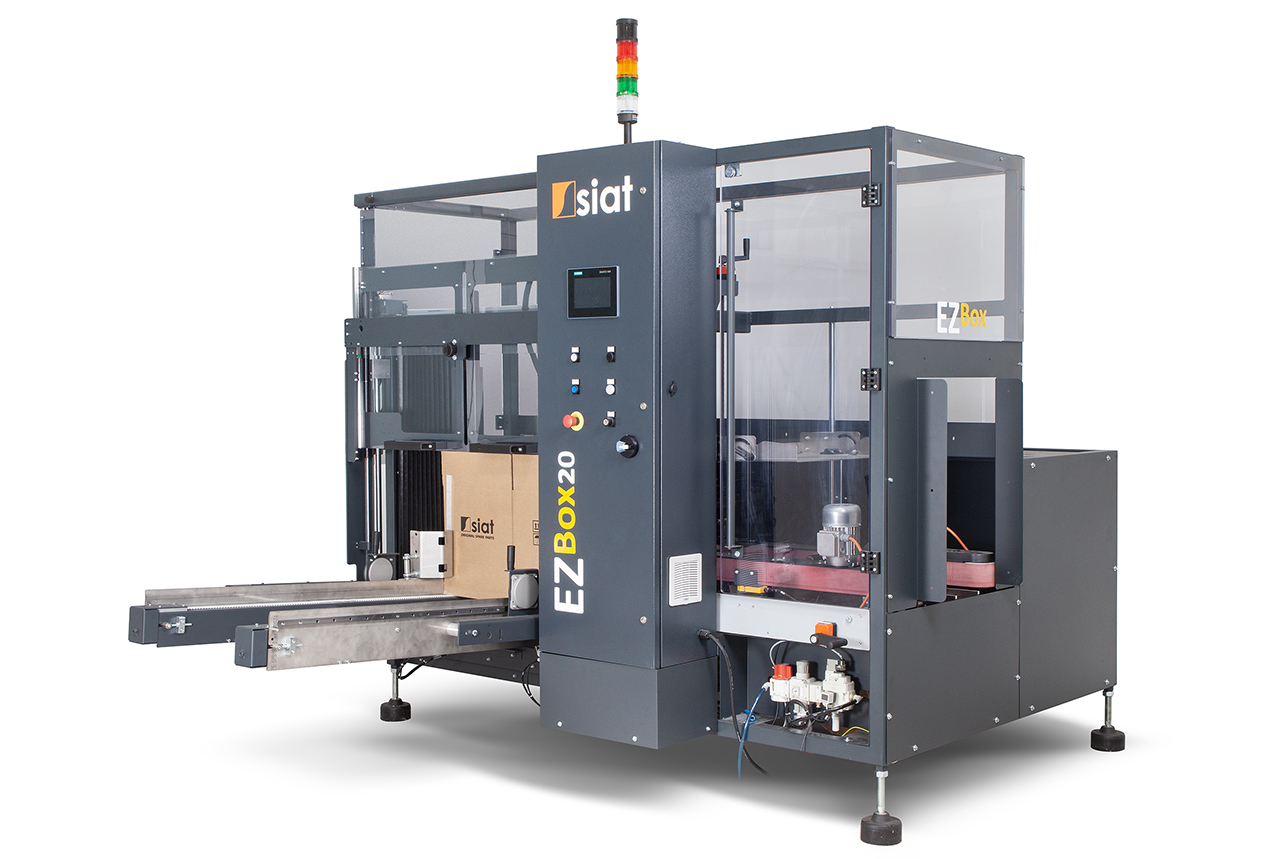

The EZ-Box 20 is a high-performance automatic case erector designed to deliver reliable operation and seamless integration into modern packaging lines.
→ Forms perfectly squared cases for efficient filling, sealing and palletizing
→ High productivity up to 20 boxes per minute with maximum uptime
→ Handles a wide range of box formats and orientations
Brochure
Data Sheet
Product Photos
Product Video
Discover our products and download the catalog
Advantages
- checkWide box size range for maximum application flexibility
- checkOpposite Hand Box Kit processes both right- and left-handed boxes for maximum layout flexibility.
- checkEasy integration into packaging lines with multiple communication protocols
- checkHigh performance up to 20 boxes per minute
- checkReduced downtime with fast format changeover
- checkGuaranteed perfectly squared boxes
- checkReliable sealing with SIAT K-Series taping units or hot melt glue
- checkUser-friendly 7” HMI for easy machine control
- checkSafety-first design fully compliant with CE regulations
Key features
EZ-Box 20 is engineered to simplify case erecting and improve the efficiency of automated packaging lines.
Its motorized walk-in magazine enables continuous operation, while the intuitive HMI and advanced control architecture make the machine easy to operate and integrate into modern production environments.
MAXIMUM UPTIME & CONTINUOUS OPERATION
-
Motorized walk-in magazine with capacity up to 120 blanks (optional 220) and end-of-box detection, allowing operators to reload blanks without stopping the machine
-
Controlled box feeding system ensuring stable blank positioning for reliable pick-up and reduced risk of jams
PERFECTLY FORMED AND SEALED BOXES
-
Self-cleaning vacuum cups with controlled gripping to adapt to different cardboard qualities
-
Active flap folding and static squaring system ensuring perfectly squared cases with precise 90° angles
-
Premium SIAT K-Series taping units delivering smooth and consistent tape application with fast reel change and easy threading
-
Optional hot melt glue sealing system for tamper-evident closure and improved package appearance
EFFORTLESS OPERATION
-
7” touchscreen HMI with intuitive interface, easy recipe management and clear diagnostics
-
All utilities and controls positioned on the operator side for improved ergonomics and simplified maintenance
FLEXIBLE BOX HANDLING
-
Opposite Hand Box Kit allowing the machine to process both right- and left-handed boxes without overturning them
-
Improves packaging line layout flexibility and operator workflow
SEAMLESS INTEGRATION
-
Designed for easy integration into automated packaging lines
-
Industrial connectivity and remote assistance capabilities supporting modern smart factory environments
SAFETY-FIRST DESIGN
-
Safety guards, interlocks and photocells ensuring operator protection and full compliance with machine safety regulations
Available models:
| Model | Max Speed | Min Box Size (L × W × H) | Max Box Size (L × W × H) | Tape Sealing | Hot Melt Glue Sealing |
| EZ-Box 20 | Up to 20 bpm | 200 × 150 × 150 mm | 600 × 400 × 450 mm | ✔ | ✔ |
| EZ-Box 20 Tall | Up to 20 bpm | 200 × 150 × 300 mm | 600 × 380 × 600 mm | ✔ | |
| EZ-Box XL | Up to 15 bpm | 200 × 200 × 250 mm | 620 × 500 × 600 mm | ✔ |
What is an EZ-BOX Case Erector?
Our EZ-BOX line by SIAT is the future of automated case erectors, designed to make your packaging process simpler and more efficient. With EZ-BOX, we take flat case blanks and turn them into perfectly square, sealed boxes with unmatched precision. We’ve engineered this line to solve common problems you face with manual forming, such as improper sealing and misaligned corners, ensuring that every package holds up during transport. Powered by advanced technology, the EZ-BOX line maximizes efficiency, reduces waste, and lowers labor costs while safeguarding your products. If you’re looking to scale operations without sacrificing quality, EZ-BOX delivers consistency and reliability every time.
When to Invest in an EZ-BOX Case Erector
The EZ-BOX line provides a rapid return on investment by ensuring square, stable cases that optimize stacking and reduce transport damage. If you’re currently forming cases manually and producing more than 100 cases per hour, it’s time to automate. Manual forming becomes inefficient and costly as production scales, leading to inconsistent case quality and avoidable damage during shipping. Our EZ-BOX machines are designed for flexibility, accommodating multiple case sizes and thinner recycled materials often used in sustainable packaging. Calculate your current costs for labor, waste, and damages, and compare them with the ROI from EZ-BOX. Investing in EZ-BOX ensures perfectly square cases, improved pallet stability, and fewer damaged goods—making it the ideal choice for businesses ready to grow efficiently.
Discover the EZ-Payback of the SIAT case erector range – click here to learn more.
Optional Features & Accessories |
|---|
| EZ-Box 20 (Tape) | EZ-Box 20 Glue | |
| Opposite Hand Box Kit | ✔ | ✔ |
| Extended Magazine (220 blanks) | ✔ | ✓ |
| SIAT Connect Remote Assistance | ✔ | ✓ |
| Higher Workbench (700–800 mm) | ✔ | ✓ |
| SIAT K-Series K12 (3″) Taping Unit | ✔ | — |
| Non-CE Version | ✔ | ✓ |
I
Technical Specifications |
|---|
Performance
| Specification | EZ-Box 20 (Tape) | EZ-Box 20 Glue |
| Throughput Speed | Up to 20 cases/min (Std & Tall) | Up to 20 cases/min |
| Up to 15 cases/min (XL) | — |
Case Size
| Minimum Case Size – Standard | 200 × 150 × 100 mm | 200 × 150 × 100 mm |
| Minimum Case Size – Tall | 200 × 150 × 300 mm | — |
| Minimum Case Size – XL | 200 × 200 × 250 mm | — |
| Maximum Case Size – Standard | 600 × 400 × 450 mm | 600 × 400 × 450 mm |
| Maximum Case Size – Tall | 600 × 380 × 600 mm | — |
| Maximum Case Size – XL | 620 × 500 × 600 mm | — |
Case Criteria
| Case Types | RSC, HSC, FEFCO 0200 / 0201 | RSC, HSC, FEFCO 0200 / 0201 |
| Flute Types | B, C, E | B, C, E |
Machine Data
| Magazine Capacity | 120 cases | 120 cases |
| 220 optional | 220 optional | |
| Box Exit | Left / Right | Left / Right |
| Workbench Height | 600 – 700 mm | 600 – 700 mm |
| Machine Dimensions | 2550 × 2870 × 2000 mm | 2550 × 2870 × 2000 mm |
| 2660 × 3170 × 2000 mm (XL) | — | |
| Machine Weight | 500 kg (Std & Tall) | 550 kg |
| 600 kg (XL) | — |
Service Requirements
| Air Consumption | 3.5 NI / Cycle | 3.5 NI / Cycle |
| Air Supply | 5.5 – 7 bar | 5.5 – 7 bar |
| Power Supply | 380 / 415 V – 50 Hz – 3PH + PE | 380 / 415 V – 50 Hz – 3PH + PE |
| Installed Power | 1.27 kW | 1.47 kW |
| Current Absorption | 4.86 A | 5.6 A |
Sealing
| Sealing Type | PSA Tape | Hot Melt Glue |
| Taping / Gluing Unit | SIAT K11 (2”) | Valco Melton KUBE Series (8L) |
| Processable Tapes | PVC / OPP / PET / Paper | — |
| Tape Reel Max Diameter | 410 mm | — |
| Inner Tape Core | 76 mm | — |
