Since 1971, SIAT has been a pioneer in flexographic printing machines, setting standards for speed, precision and control in packaging tape printing. The L-Series is designed to help companies bring printing in-house, reduce outsourcing, shorten lead times and produce high-quality branded tapes on demand.

The range includes semi-automatic and fully automatic models, with modular technologies that can be adapted to different materials, production volumes and printing processes.

Why choose a SIAT flexographic printing machine?

SIAT flexo machines are designed to print on a wide range of materials, including PVC, BOPP, paper tape, water-activated paper tape and non-adhesive substrates. Depending on the material, the process can include corona treatment, primer coating, ink printing and release coating to ensure adhesion, print protection and smooth unwinding.

Main benefits:

• In-house printing with shorter lead times
• Reduced outsourcing and lower minimum order quantities
• Fast response to seasonal, promotional or urgent branding needs
• Better control of quality, production and delivery
• Premium branded tapes produced on demand

---

The SIAT L-Series models

L33 – Entry-level semi-automatic flexographic printing machine

The L33 is the entry-level model of the SIAT L-Series. Compact, flexible and easy to operate, it is ideal for companies that want to start producing branded tapes in-house with a low level of complexity.

It is designed for short runs, medium-volume jobs and customers looking for a reliable first step into flexographic printing.

Key strengths:

• Simple and compact design
• Semi-automatic operation
• Up to 3 colours
• Printing, slitting and rewinding in one machine
• Ideal for in-house tape printing with limited investment
• Suitable for easy printable materials and standard applications

---

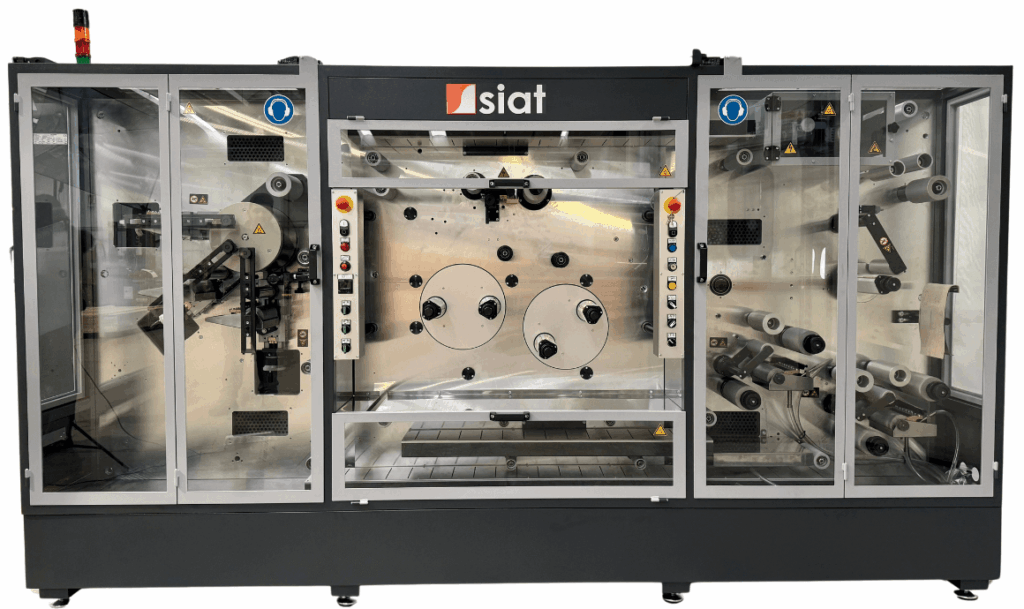

L36 – Flexible semi-automatic flexographic printing machine

The L36 is designed for companies that need more flexibility and process control. Compared to the L33, it allows a more complete printing process, with optional treatment and coating stations depending on the material.

It is suitable for customers printing on different substrates and requiring stable quality across multiple applications.

Key strengths:

• Up to 3 colours
• Semi-automatic operation
• Primer coating station
• Release coating station
• Corona treatment option
• Suitable for 1-step, 2-step and 3-step printing processes
• Greater flexibility across different adhesive types and materials

---

L46 – Four-colour semi-automatic flexographic printing machine

The L46 extends the L36 concept with four-colour printing capability. It is designed for companies that require more advanced graphics, stronger brand visibility and greater flexibility in printed tape design.

It remains semi-automatic but offers higher printing capability for more complex jobs.

Key strengths:

• Up to 4 colours
• Semi-automatic operation
• More graphic flexibility
• Primer, release coating and corona options
• Suitable for more demanding print layouts
• Ideal for converters producing premium branded tapes

---

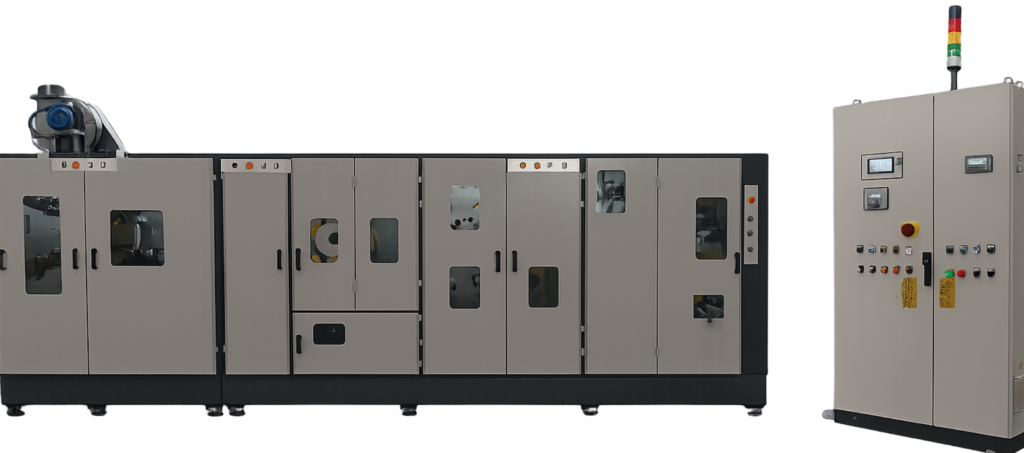

L444 – Fully automatic flexographic printing machine

The L444 is the fully automatic model in the SIAT L-Series. It is designed for high-output production, reducing operator intervention and increasing process automation.

According to the brochure comparison table, the L444 includes automatic loading/unloading reels and tape cutting, PLC touchscreen control and a maximum speed up to 200 m/min.

Key strengths:

• Fully automatic operation
• Up to 4 colours
• Automatic reel loading/unloading and tape cutting
• PLC touchscreen HMI
• Automatic core loading
• High productivity up to 200 m/min
• Ideal for industrial-scale tape production

---

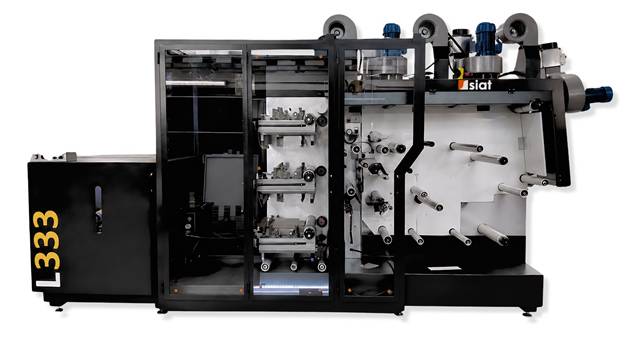

New at Interpack: L333 wide-format flexographic printing machine

At Interpack, SIAT introduces the new L333, a wide-format flexographic printing machine developed to increase productivity by processing a wider web.

While the current range presents the traditional L-Series range with 150 mm input tape reel width, the L333 introduces a new wide-format approach with web width up to 300 mm. This allows customers to produce more finished rolls from a single jumbo log.

For example, from a 300 mm web, the machine can produce up to six rolls of 50 mm width.

Key strengths:

• Wide-format web width up to 300 mm
• Higher output per cycle
• Up to 3 colours
• More finished rolls from one jumbo log
• Lower cost per roll
• Reduced processing time
• Adjustable spacers for different tape widths
• Maximum roll diameter: 330 mm
• Temperature management with heating or cooling according to material type
• Optional primer, release coating, corona treatment and peristaltic ink pumps
• Flexopol compatibility for in-house cliché production

The L333 is not just another model in the range: it introduces a productivity-driven approach. Instead of focusing only on speed, it focuses on output per cycle, material utilization and cost per roll.

---

Optional technologies across the range

The SIAT L-Series can be configured with several optional technologies depending on the material and process requirements. Such as: corona treatment, primer coating and release coating as key modules for different printing processes.

Main optional features include:

• Corona treatment station
• Primer coating station
• Release coating station
• Adhesive side printing
• Peristaltic pumps for ink trays
• Non-adhesive materials printing module
• Flexopol cliché making machine

---

Which SIAT flexographic printing machine should you choose?

• Choose L33 if you need a compact entry-level solution for in-house printing.
• Choose L36 if you need more process flexibility and material compatibility.
• Choose L46 if you need four-colour printing and more advanced graphics.
• Choose L444 if you need fully automatic high-output production.
• Choose L333 if your priority is producing more rolls per cycle with a wider web and reducing cost per roll.

---

The SIAT L-Series offers a complete portfolio of flexographic printing machines for different production needs, from entry-level in-house printing to fully automatic industrial production.

With the new L333, SIAT expands the range with a wide-format solution designed for converters and manufacturers looking for higher productivity, better material utilization and lower cost per roll.

SIAT L-Series: make every roll a signature.
