BoxR

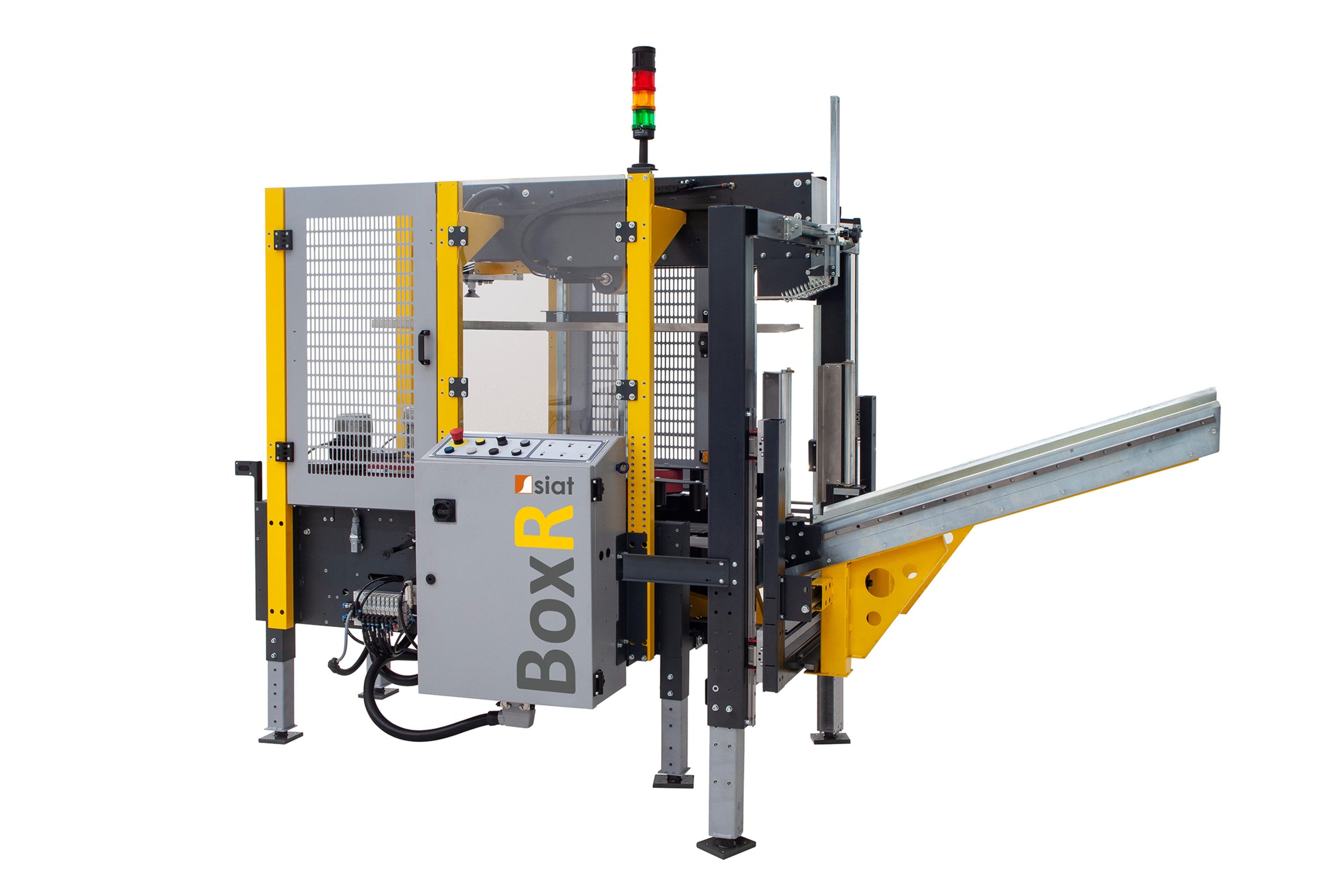

In-Line Automatic Case Erector with Reliable Performance and Compact Footprint

The BoxR is SIAT’s entry-level automatic case erector, designed to simplify case erecting and sealing operations while minimizing footprint thanks to its in-line magazine. It is the ideal first step into automation for companies looking to replace manual or semi-automatic box erection with a reliable, space-saving and cost-effective solution.

→ Automatically forms and seals cases for smooth downstream operations
→ Up to 10 boxes per minute with reliable operation
→ In-line magazine design minimizing machine footprint

Brochure Datasheet BoxR Payback – Smart Automation with Fast ROI Product Photos Product Video Short Video Discover our products and download the catalog
CONTACT US

Advantages

  • checkCompact in-line design minimizing machine footprint
  • checkAutomatic case erecting and sealing improving productivity
  • checkReliable case forming ensuring properly squared boxes
  • checkEasy operation with simple and intuitive controls
  • checkEasy line integration with standard PLC architecture
  • checkReduced manual handling improving workflow efficiency
  • checkConsistent bottom sealing with SIAT K-Series taping units

Key features

BoxR is engineered for companies that want to start automating case erection with a practical and cost-effective solution. Its limited footprint, simple controls and reliable squaring and sealing process make it the right choice for warehouses, small production companies and packaging lines where available space and investment are key decision factors.



SAVE SPACE

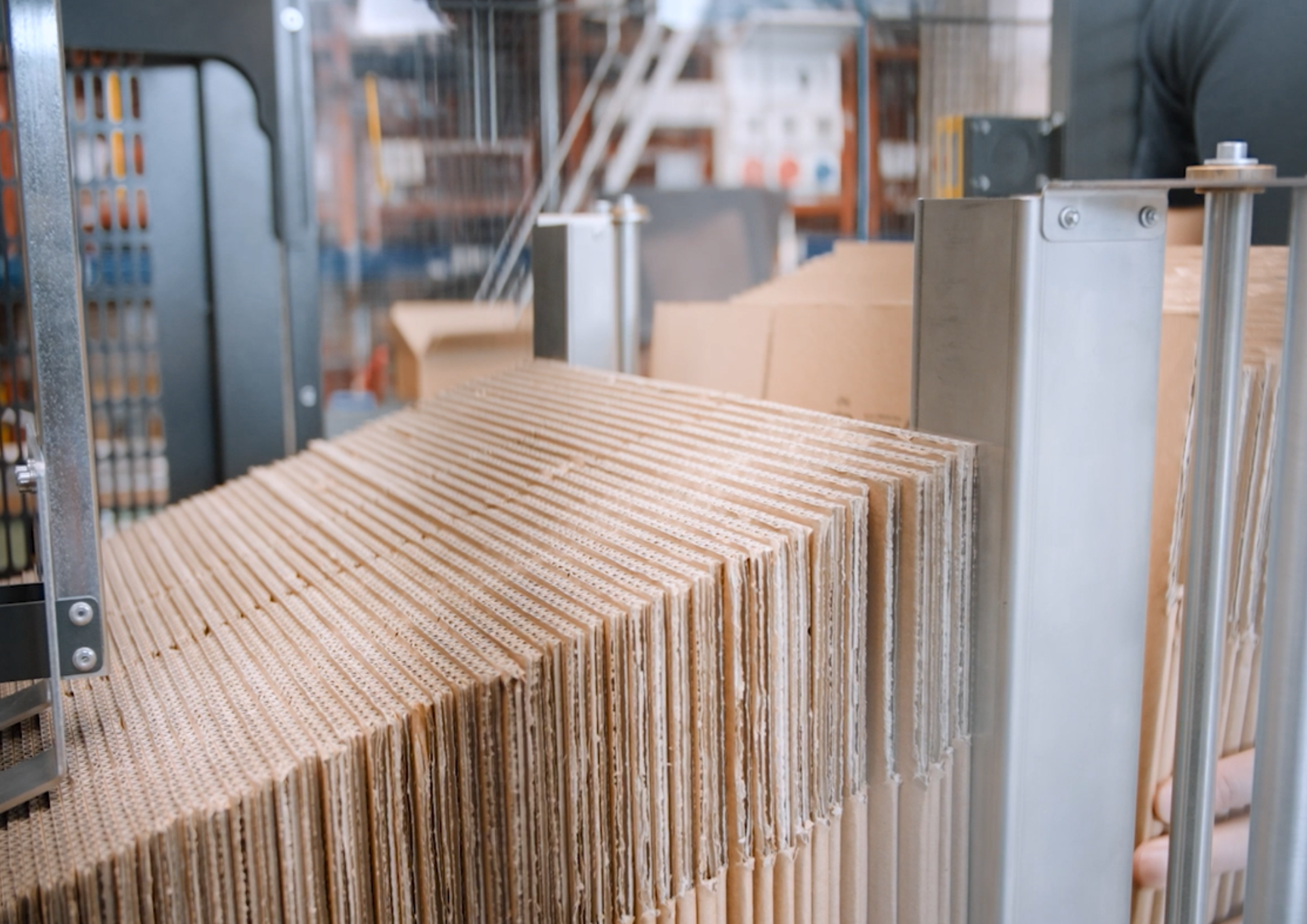

  • In-line magazine design reduces the overall machine footprint

  • Compact machine architecture ideal for production lines with limited space

  • Optimized layout allowing installation close to existing equipment

IDEAL FOR SMALL PRODUCTION LINE

  • Perfect for warehouses and small production environments

  • Reliable automation with limited investment

  • Improves packaging consistency and workflow efficiency

BOX SQUARING GUARANTEED

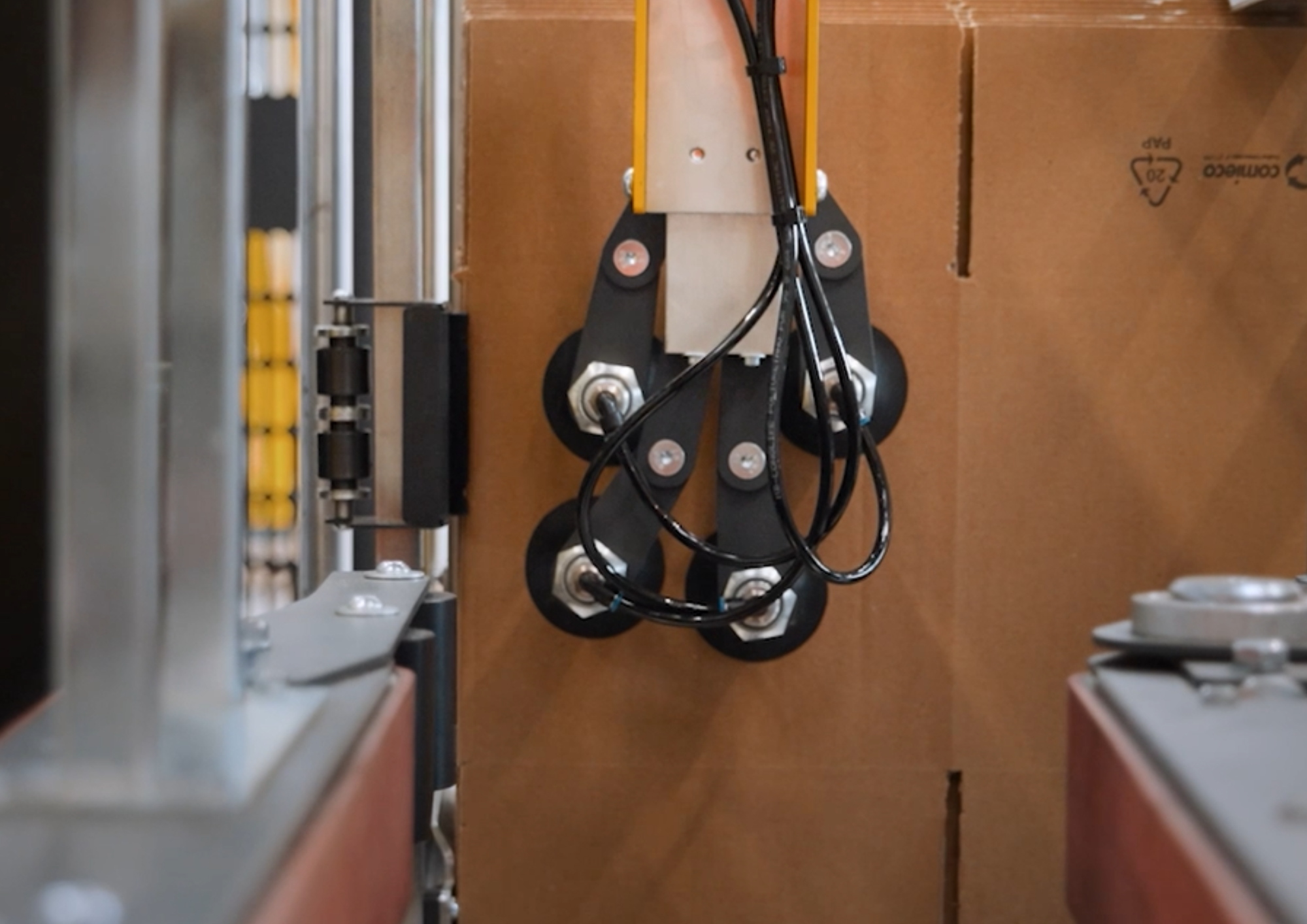

  • Pneumatic picking arm with suction cups for reliable blank pick-up

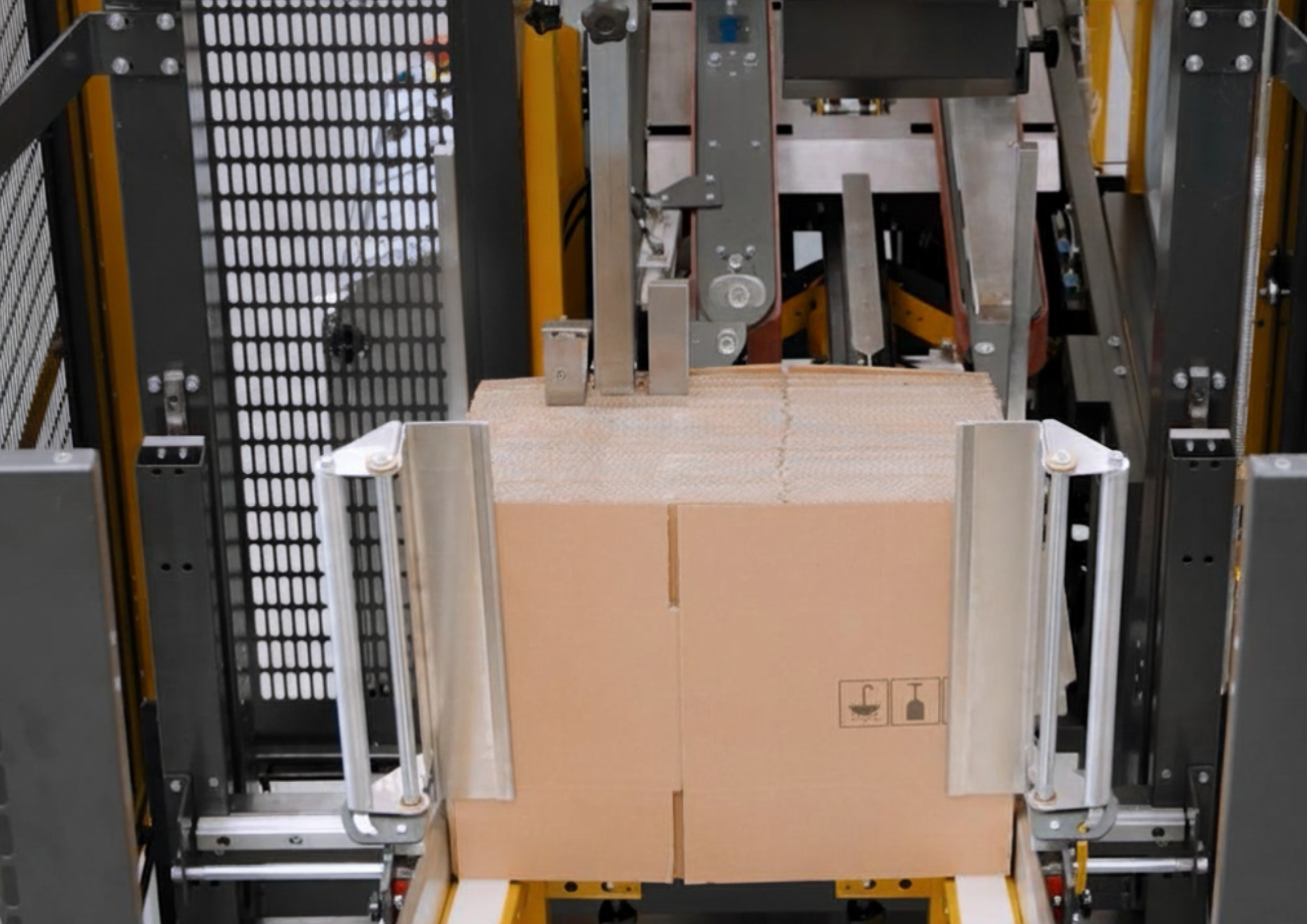

  • Automatic flap folding system ensuring proper case forming

  • Independent motorized movements improving box alignment and stability

  • Consistent squaring cycle across different case formats

RELIABLE TAPE SEALING

  • SIAT K-Series taping units ensuring consistent tape application

  • Fast tape reel change and easy tape threading

  • High-friction drive belts for reliable box transfer during sealing

EASY LINE INTEGRATION

  • Integrated control panel with essential machine functions

  • Manual and automatic operation modes

  • Start, stop, reset and emergency controls for easy daily operation

  • SIEMENS PLC S7-1200 control system

  • Standard signal exchange with upstream and downstream equipment

  • Compatible with Profinet or dry contact communication

SAFETY-FIRST DESIGN

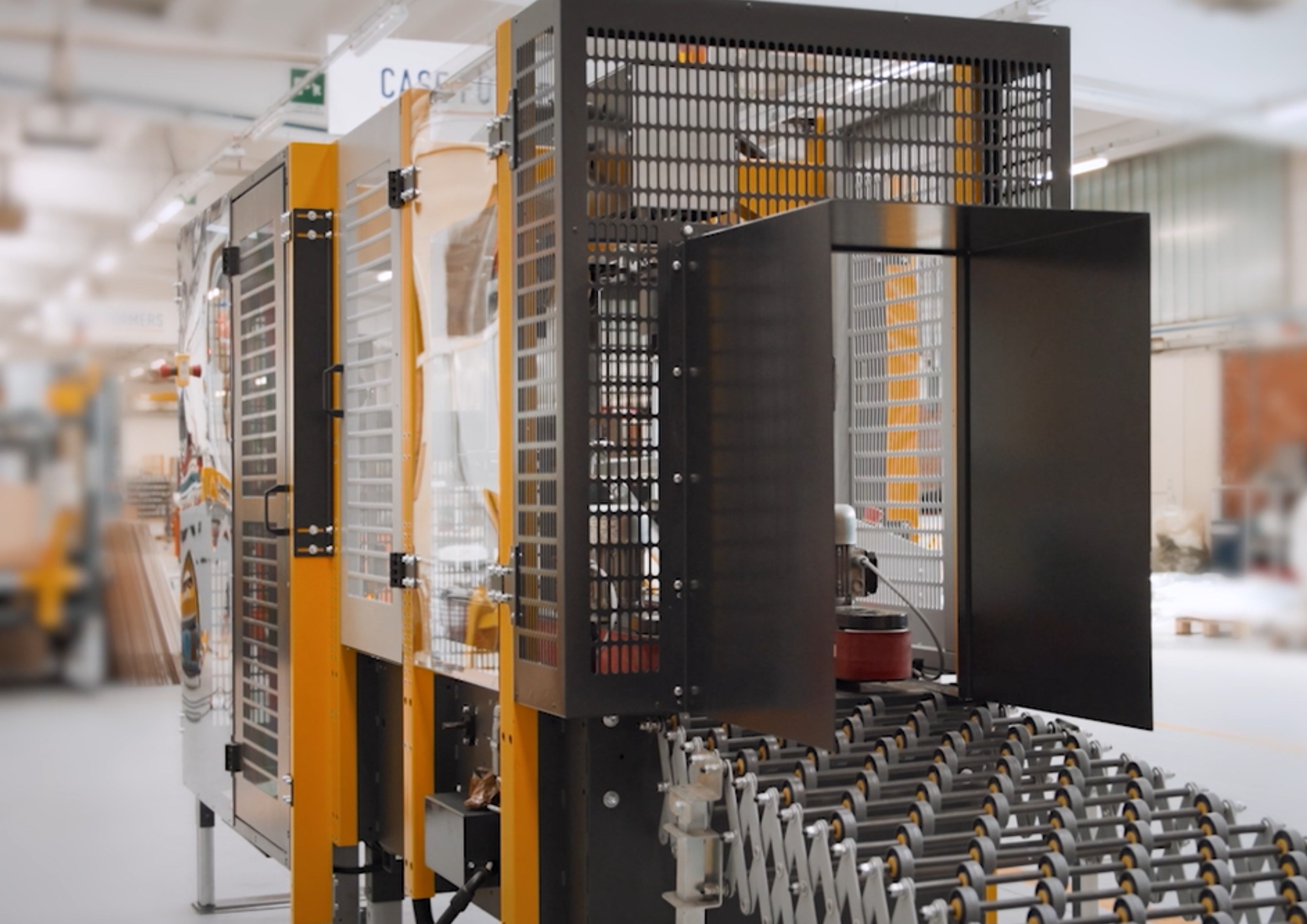

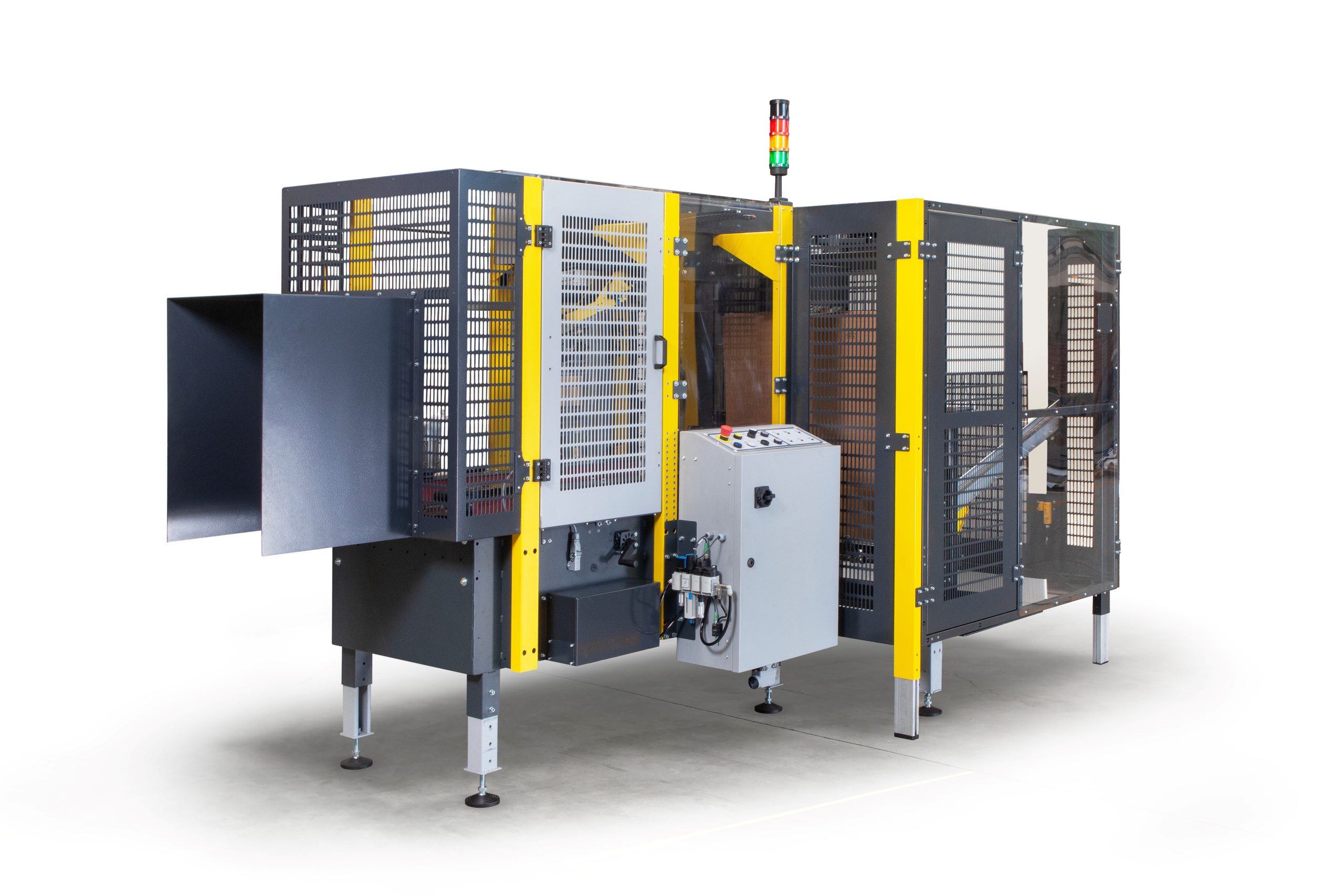

  • Safety fences and interlocked guards protecting operators

  • RFID safety sensors ensuring correct machine access control

  • Transparent panels improving machine visibility during operation



What is an BoxR Case Erector?



A case erector automatically takes flat corrugated blanks, forms them into square cases, folds the bottom flaps and seals them before the product filling stage. The BoxR performs these operations automatically, improving productivity and ensuring consistent case quality for downstream packaging processes such as filling, top sealing and palletizing.



When to Invest in an BoxR Case Erector



Manual case forming becomes inefficient as production volumes increase. Automating this operation with BoxR improves packaging consistency while reducing repetitive manual work and increasing production capacity. If your production requires more than 100 cases per hour, automating case erecting helps improve workflow efficiency and packaging quality. BoxR offers a practical solution to automate this process while maintaining a compact footprint and simple operation.

Automating case erecting with BoxR reduces manual labor and improves packaging efficiency. By increasing productivity and ensuring consistent case quality, BoxR helps companies achieve a fast return on investment while improving end-of-line operations.

Discover the Payback of the SIAT case erector range – click here to learn more.

Optional Features & Accessories
BoxR
Extendable conveyors (GTL / GTR) ✓
Roller conveyor RG ✓
SIAT K-Series K12 (3″) ✓
Non-CE Version ✓

I

Technical Specifications

Performance

Throughput Speed Up to 10 cases/min

Case Size

Minimum Case Size (mm) 200 × 150 × 150
Maximum Case Size (mm) 450 × 400 × 450

Case Criteria

Case Types RSC, HSC, FEFCO 0200 – 1
Flute Types B, C, E

Machine Data

Magazine Capacity Up to 150 blanks
Box Exit Left / Right
Workbench Height (mm) 650 – 900
Machine Dimensions (mm) 3715 × 1515 × 1800–2150
Machine Weight (Kg) 550

Service Requirements

Air Consumption 48 NI / Cycle
Air Supply (bar) 5.5 – 7
Power Supply 380 – 415 V, 50 Hz – 3PH + N + PE
Installed Power (kW) 0.36
Power Absorption (A) 1.33

Sealing

Sealing Type PSA Tape
Taping Unit SIAT K11 (2”)
Tape Leg (mm) 70
Processable Tapes PVC / OPP / PET / Paper
Max Reel Diameter (mm) 410
Inner Tape Core (mm) 76



ideal for
these industries

WINE & SPIRITS WINE & SPIRITS
HOUSEHOLD, CONSUMER & PERSONAL CARE HOUSEHOLD, CONSUMER & PERSONAL CARE
FOOD & DAIRY FOOD & DAIRY
PHARMACEUTICAL INDUSTRY PHARMACEUTICAL INDUSTRY
LOGISTICS INDUSTRY LOGISTICS INDUSTRY
