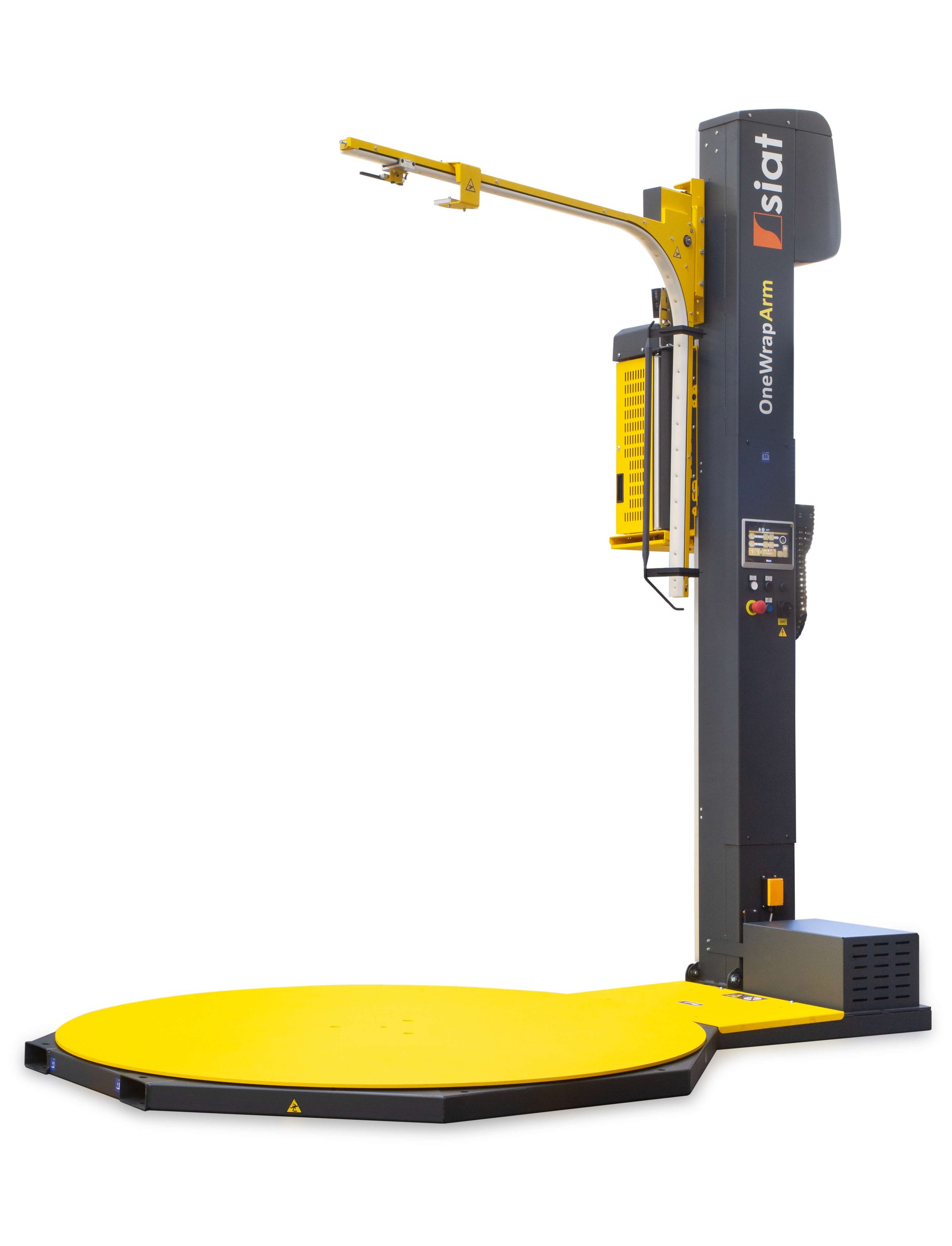

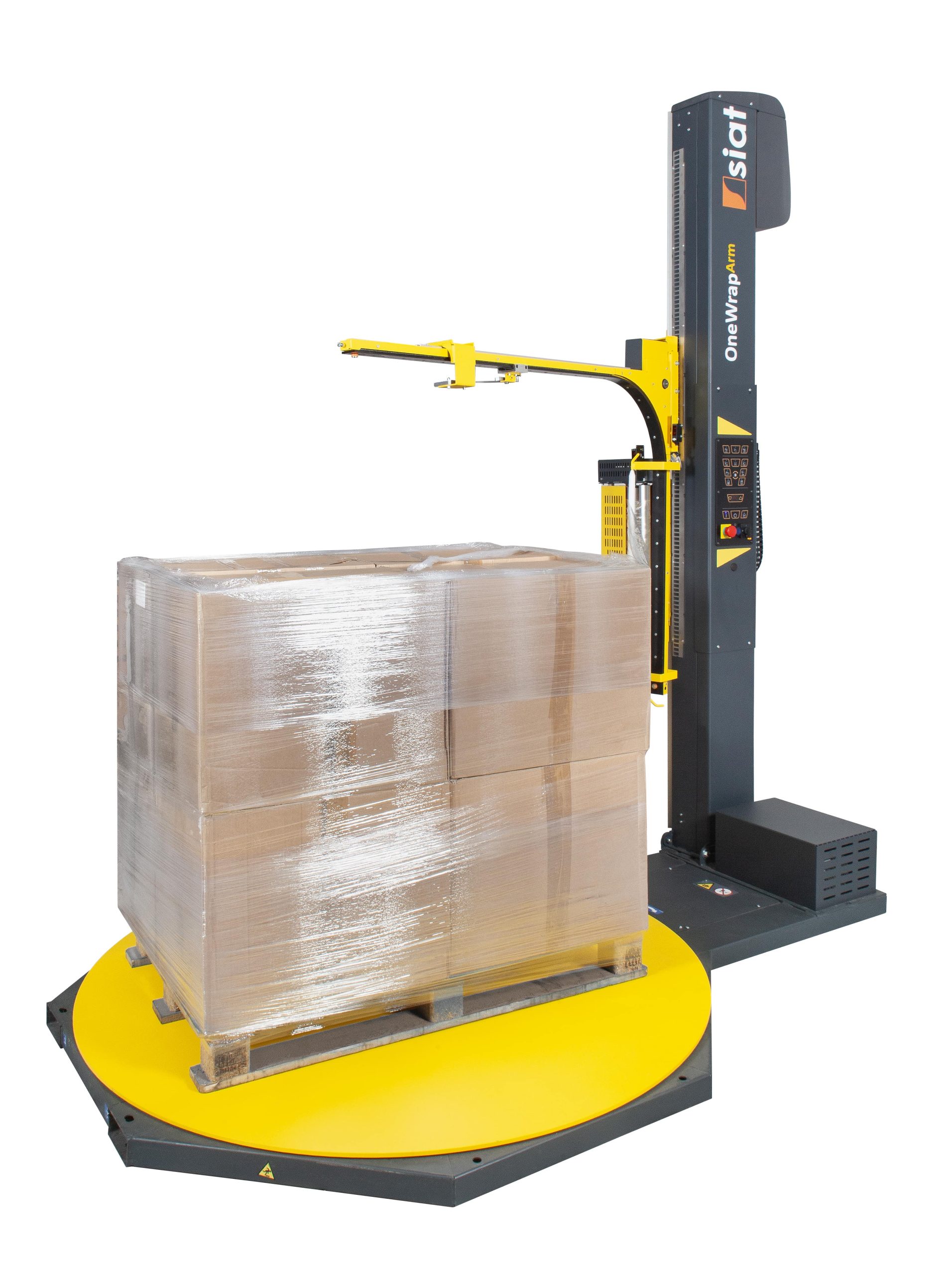

OneWrapArm

Semi-Automatic Stretch Wrapper

OneWrapArm, the new semi-automatic pallet stretch wrapper, automatically attaches and cuts the film at the end of each cycle with no need for fences or scanners.

Thanks to its integrated safety systems, the machine operates safely in open environments, reducing footprint and improving accessibility.

The OneWrapArm by SIAT is the perfect solution for businesses seeking core automation, consistent daily performance, and a compact design.

Fully electric, compact, and simple to use, OneWrapArm delivers stable and secure wrapping with minimal need for operator involvement.

Safe wrapping. Small footprint. No barriers.

Advantages

  • checkHigher productivity, errors avoiding
  • checkSpace-saving, safe operation
  • checkLower costs, energy efficiency
  • checkFast setup, consistent results

Key features

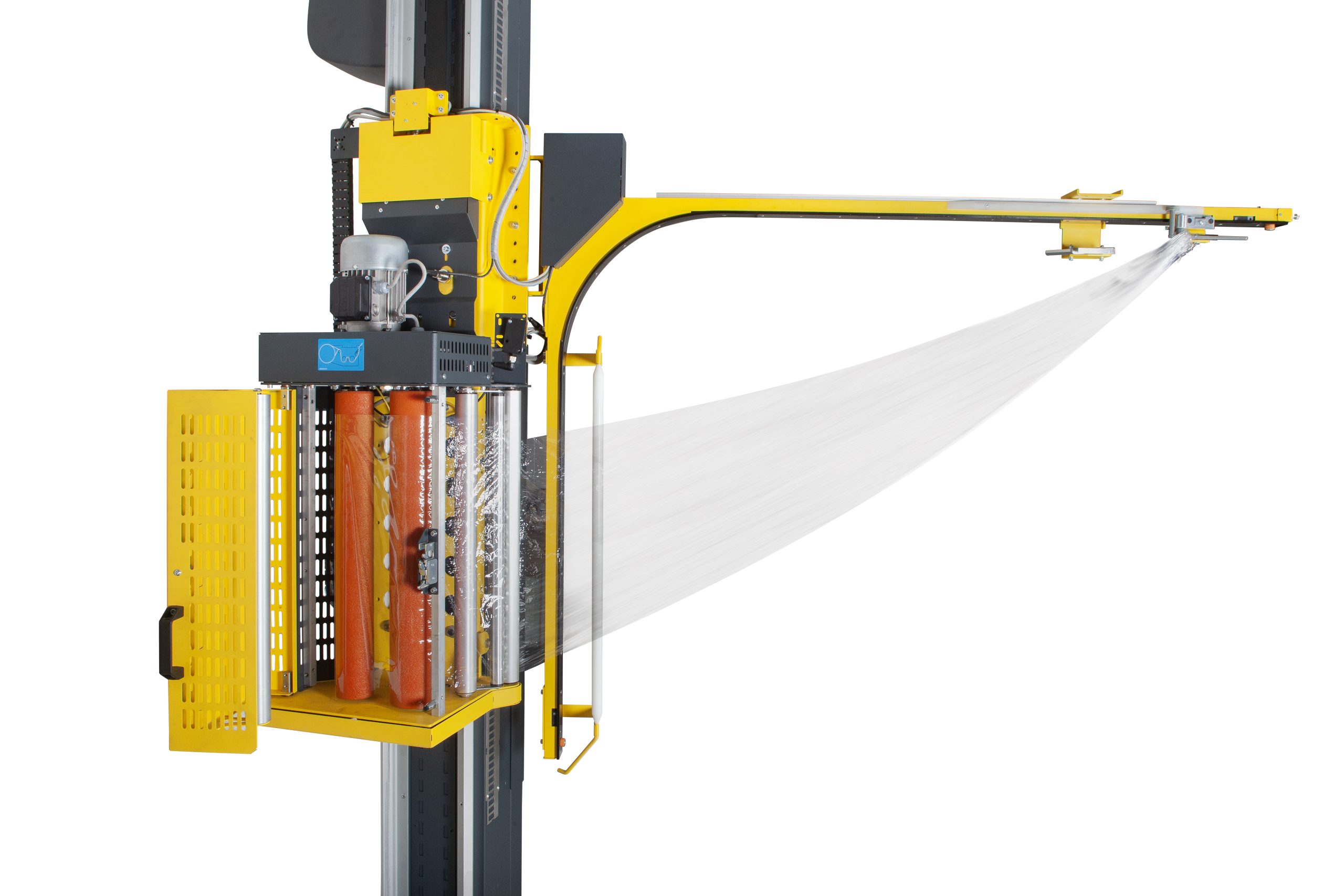

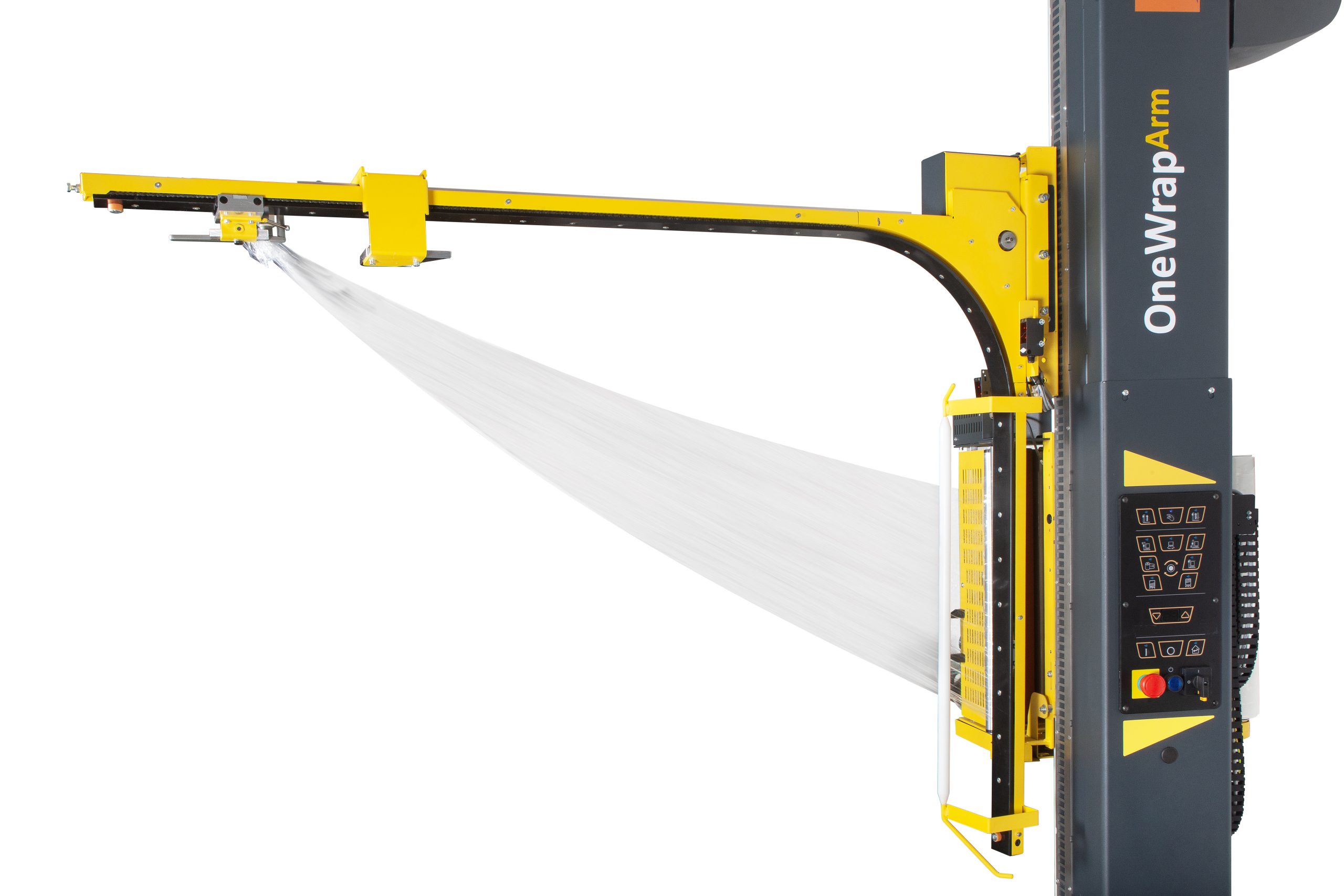

Fully Automatic Film Fixing and Cutting

Automatically attaches and cuts the film
Automation increases productivity, ensure consistent wrapping, and avoids operator fatigue or errors.


Fences-Free & Compact Footprint

Integrated safety features for safe operations without physical barriers
Ideal for facilities with limited spaces, while still ensuring safe, compliant, and uninterrupted operation.


100% Electric – No Compressed Air Needed

No need for pneumatic connections or compressors
Reduces installation costs, mainenance needs, and energy consumption.

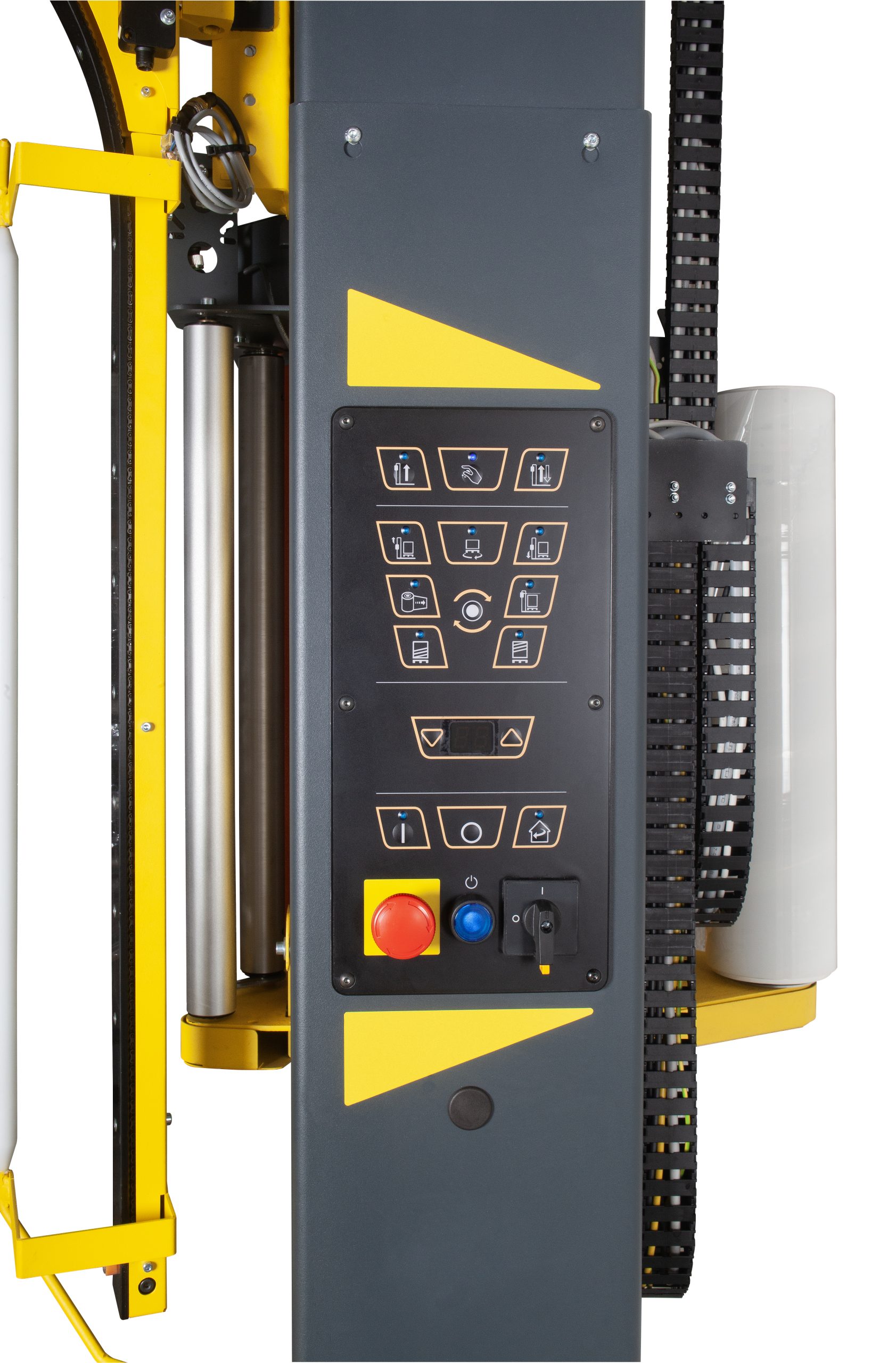

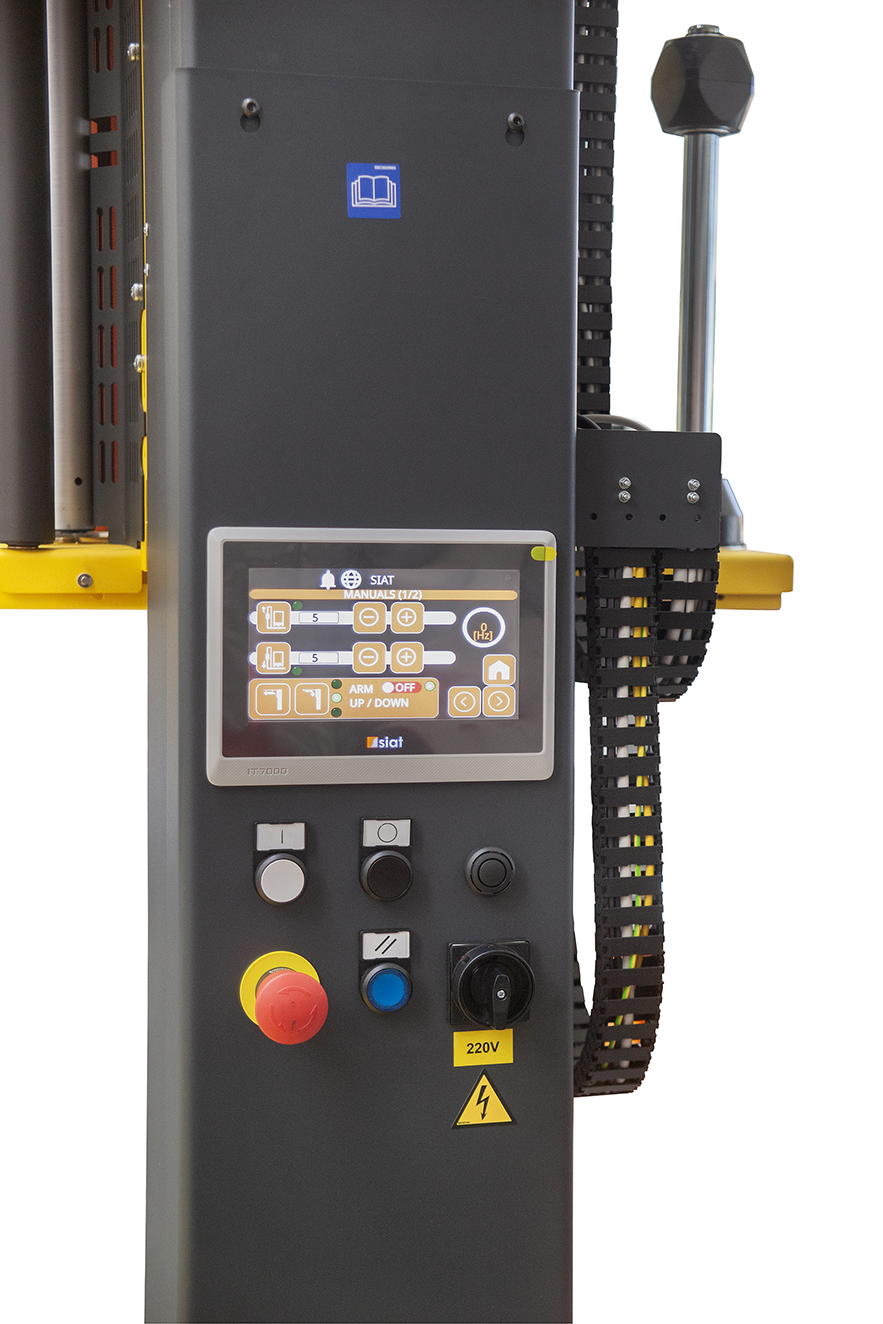

Ready-to-Wrap Programs

Select and save all wrapping parameters
Up to 9 +1 custom programs can be stored and recalled by number for quick, consistent wrapping.

Features table

Feature Details
MAXIMUM OUTPUT SPEED Up to 25-35 loads/hr
TURNTABLE SPEED (VARIABLE) 6 - 12 rpm
POWERED WITH FIXED GEARS (LP) 240-200-150%
FILM CARRIAGE LP
LIFTING AND LOWERING SPEED The reel holder carriage can be adjusted from o to 10
FILM CAPACITY Ext.Ø 300 mm / core Ø76mm (fix) / weight 20 kg thickness up to 35 micron
STANDARD FILM WIDTH (MM) 500
PLATFORM DIAMETER (MM 1.650
MAX. PALLET HEIGHT (MM) INCL. OVERLAP ABOVE PALLET TOP EDGE 1.900
MIN. PALLET HEIGTH (MM) INCL. OVERLAP ABOVE PALLET TOP EDGE 800
MAX. / MIN. PALLET SIZE (MM) 1000x1200 / 600x600
MAX. WORKING LOAD (KG) 2.400
POWER SUPPLY 220/240V 50/60Hz / 400V 50/60Hz / others on request
MAX. NOISE LEVEL 72,0 dB (A)
OPERATING TEMPERATURE 5 - 40° c

Options

W8Wrap - Weigh and Wrap in one easy step - The system performs precise weighing of each pallet and can be easily retrofitted

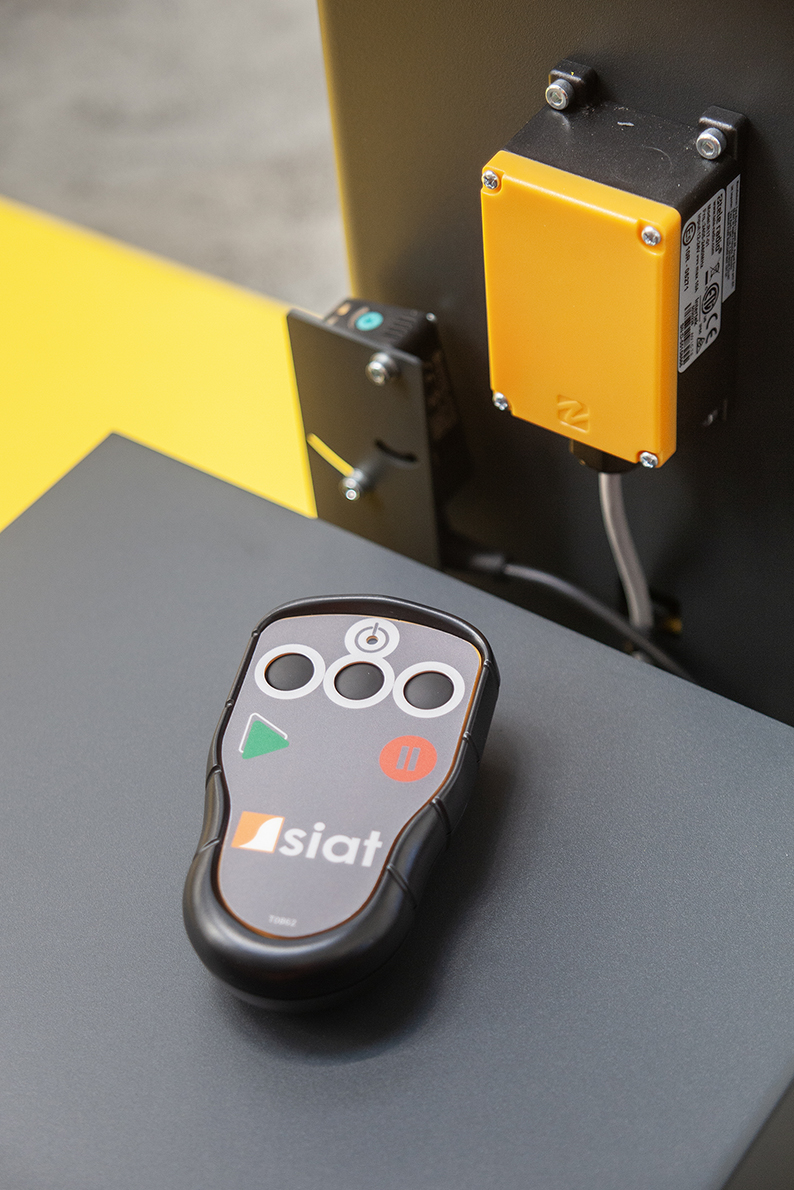

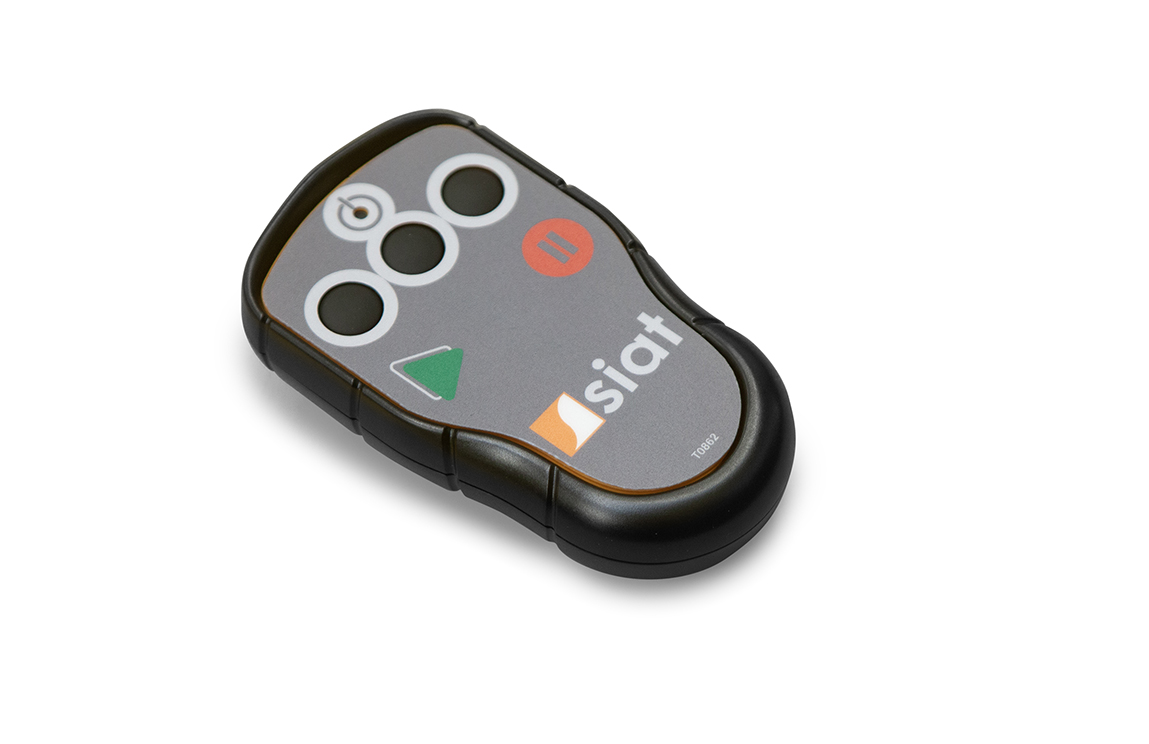

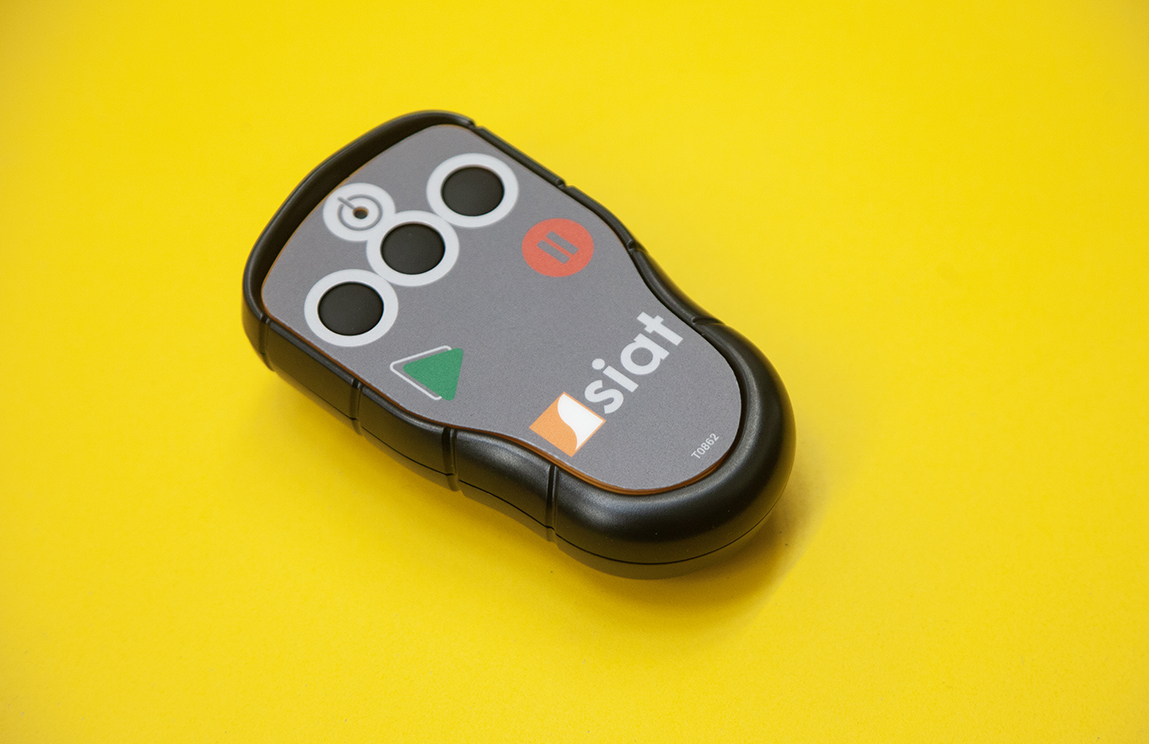

Remote control for easy wrapping activation
Elongated ramp: L = 1.870mm (for loading pallet truck)
Pit-frame (burial) for installation at ground level

ideal for
these industries

HOUSEHOLD, CONSUMER & PERSONAL CARE HOUSEHOLD, CONSUMER & PERSONAL CARE
FOOD & DAIRY FOOD & DAIRY
PHARMACEUTICAL INDUSTRY PHARMACEUTICAL INDUSTRY
LOGISTICS INDUSTRY LOGISTICS INDUSTRY
